"SHB"

Sliding gate

  • The double gate can span a width of no less than 26 metres
  • The rail guide along a concrete foundation beam ensures highly stable running behaviour
Product Description
Our Services
  • We advise
  • We deliver
  • We clean
  • We dispose
  • We collect

Product Description

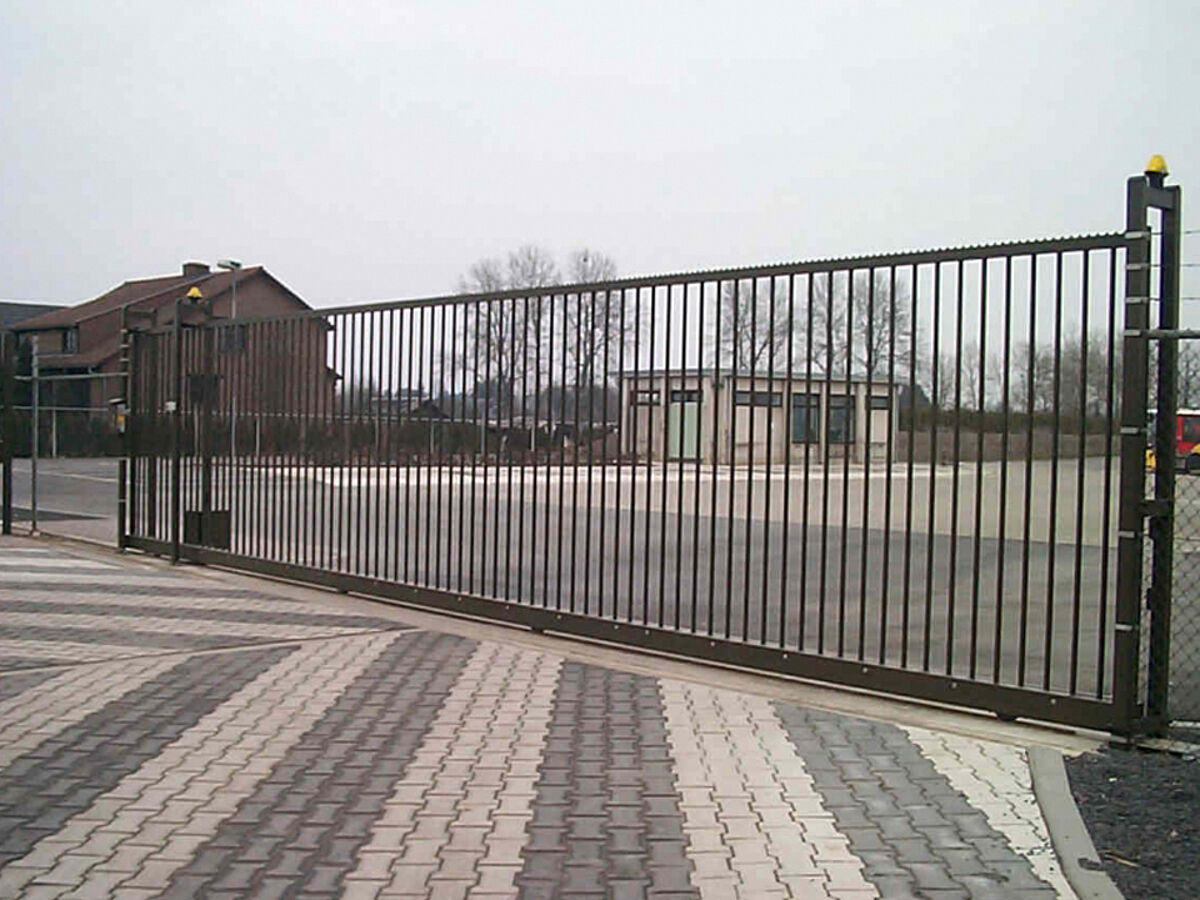

The SHB sliding gate offers access customized to your requirements, both in respect of its height and its width. The double gate can span a width of no less than 26 metres. Here too the rail guide along a concrete foundation beam ensures highly stable running behaviour. The gate has a safety feature to prevent it from running out of the guide. The gate is durably guided by the mechanical roller system. The sliding gate can be combined with the Heracles fencing system.



  • The SHB is made of elements of 3.00, 3.90 and 4.80 m
  • The elements are connected using invisible coupling pieces
  • The lower beam is made of 0.15 x 0.10 m box profiles
  • The frame is made of 0.60 x 0.60 m box profiles and is welded onto the lower beam
  • Gates of a length of over 10 metres have an extra guide portal
  • Available in Heracles design
  • Gate height 1.50 - 2.50 m
  • Free opening 3.40 - 13.15 m
  • Manual or electrical operation
  • Gate can be supplied pre-assembled
* Subject to technical changes
  • Colour range
  • The basic finish is: galvanised NEN-EN-ISO 1461,
  • The following colours are available:
  • RAL 6005 moss green
  • RAL 6009 pine green
  • RAL 6014 Heras green®
  • RAL 7016 anthracite grey
  • RAL 7030 stone grey
  • RAL 9005 deep black
  • RAL 9010 clear white
  • Other colours on request.
  • Options
  • The gate can be fitted with 1 or 2 rows of rotating dragon-tails with aluminium segments
  • Available in Atlas design
* Interior may vary
